Name: Hex flange self tapping step special bolts cold formed fasteners
Brand: Shanghai Kinsom Precision Hardware Co.,ltd
SKU: hex flange bolt
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Carbon Steel

Finish: Zinc Coating

Size: M6-M30

Tolerance: ±0.05~0.1

Basic Infomation

Place of Origin: Shanghai China

Brand Name: Kinsom Fasteners

Model Number: hex flange bolt

Payment & Shipping Terms

Packaging Details: Standard packaging

Delivery Time: 30days

Payment Terms: L/C.T/T

Supply Ability: 1000000pcs/week

Gallery

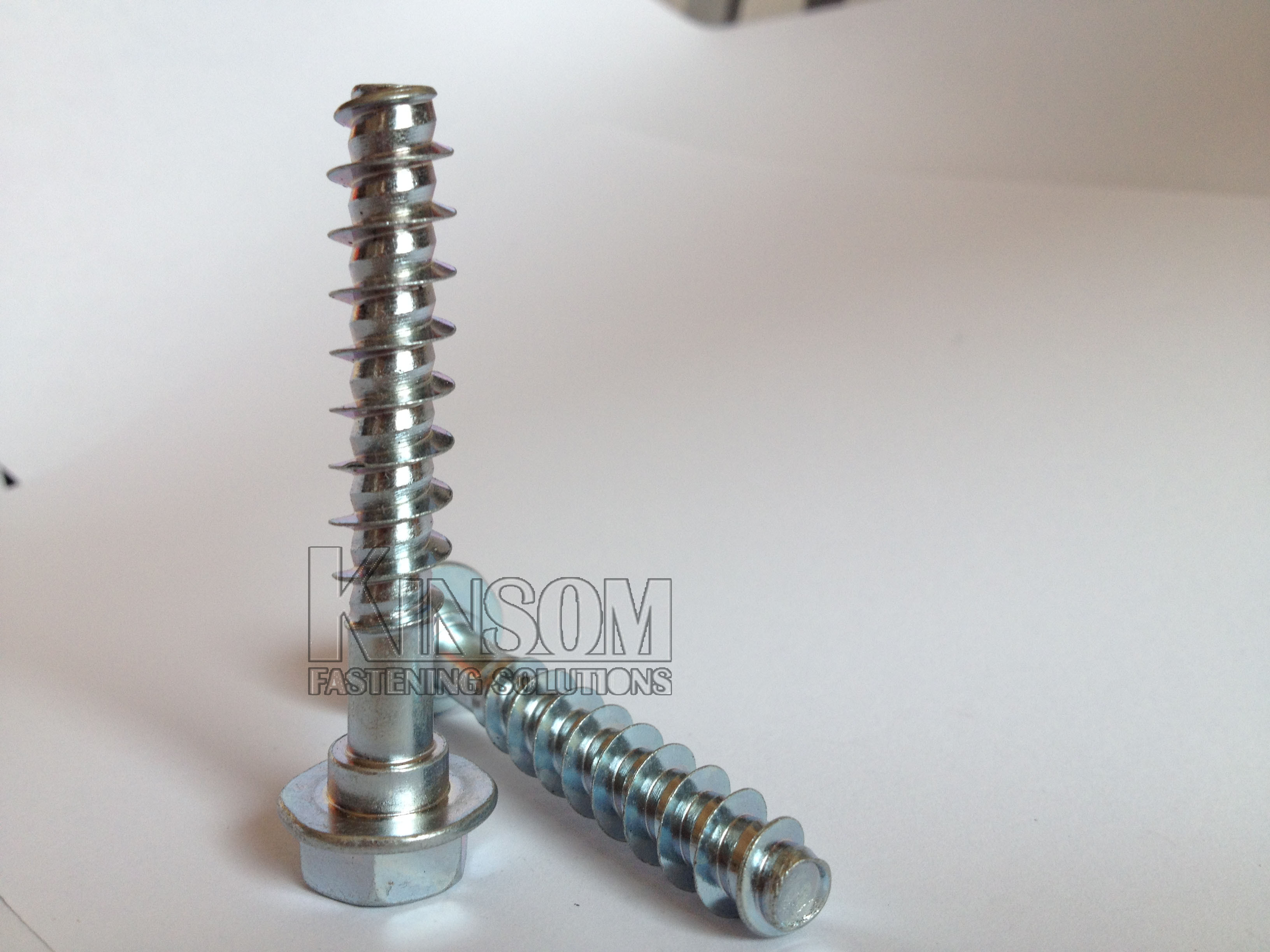

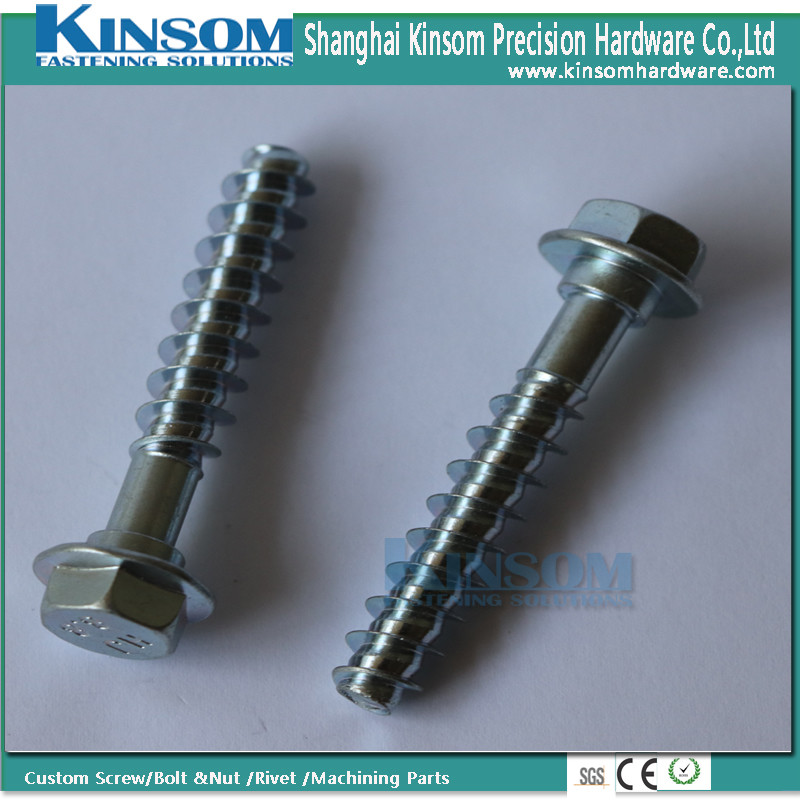

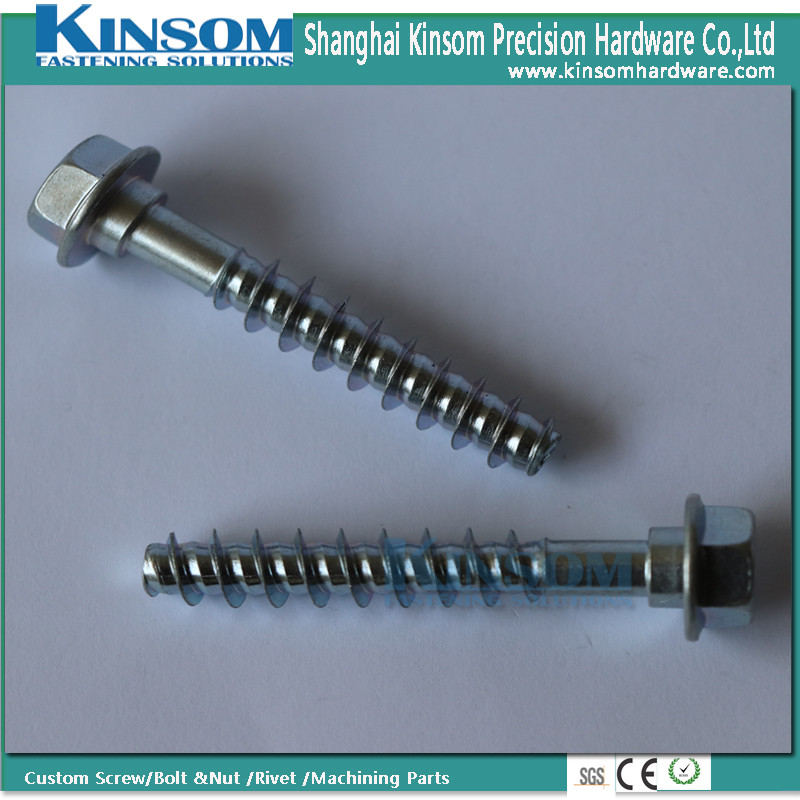

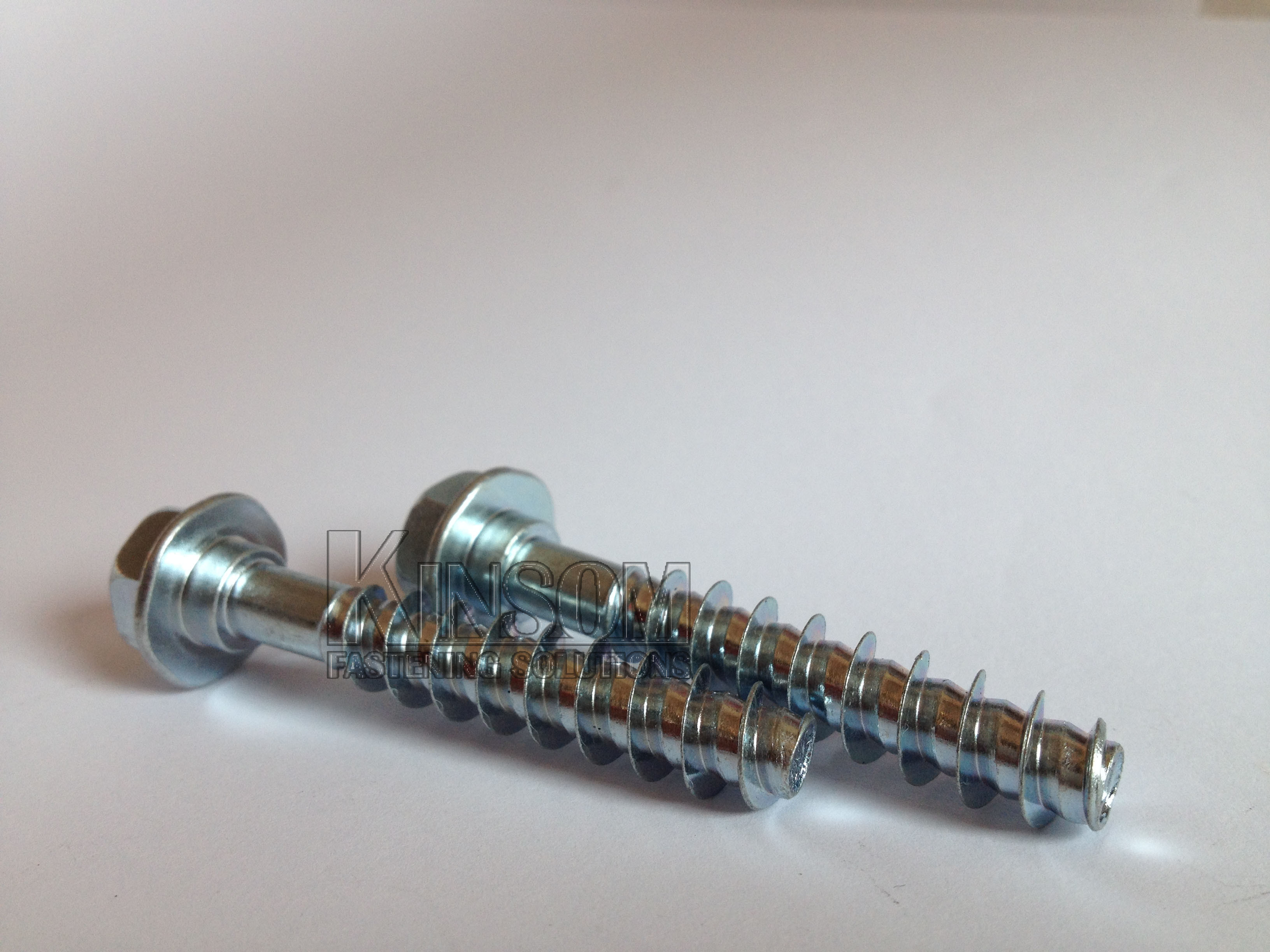

Hex flange self tapping step special bolts cold formed fasteners

Product Description

Tag:Self tapping ;hex flange bolt ;

Hex flange head with carbon steel AISI1022
Thermo chemical treatment: cemented seasoned and stress relief
Non standard step bolts knurling screw
Cold forging process for manufacturing
Case hardness: 600-700HV
Core hardness: 300-425HV
Size : 3/8"*45
Thread type: BT type
Finish: blue white zinc coating 5um min
Marked: KS or by your needs
Thickness of heat treatment: 0.15-0.28MM
SST: 48hrs min per ASTM B117 0% red rust
Industry: building construction and others
Size and Material can be customized by your specific needs.

Multiple choice - material,size

Multiple choice -finish,heat treatment

Multiple choice -process way

Multiple choice of your full service supplier of fastening solution

We update news of Fasteners,Follow us:

All the following details can be customized by your specific need. OEM service is welcomed.
Product Name	Hex flange bolt
Material	Stainless steel 304 `316 ,carton steel 45# 22A 10B21,alloy steel,aluminum5052 6063F22,brass ,Titanium/Ti Alloy And so on
Hardness	4.8-12.9 grade
Type of Shank	Full thread/ parital thread
Drivers	slotted,six-lobe,pozi driver,square,triangle,8 point,phillips
Type of Head	flat,oval,truss,PF.round ,button,pan(JIS,ANSI),fillister,square
Surface Treatment	Zinc,nickel,gold brass,black/black oxide etc
Shank Diameter	M1.7-M30 customized by your need
Overall Length	6-120MM
Salt Spray Test	24hr-1000hr
Head Diameter
Application	The product is used for fixing thing in one place,it is also apply to material transmission, large drill bit.
Package Description	25kg/carton;Can Pallet.Or according to customers' requests.

Carton box +pallet packaging to protect your goods in process of shipping

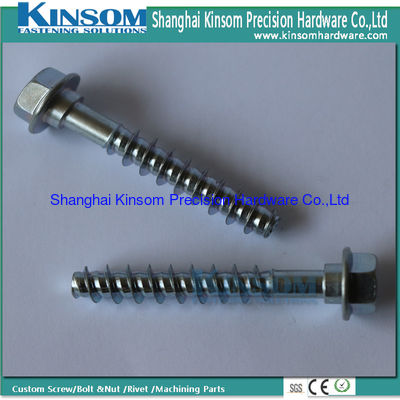

Hex flange self tapping step special bolts cold formed fasteners 4

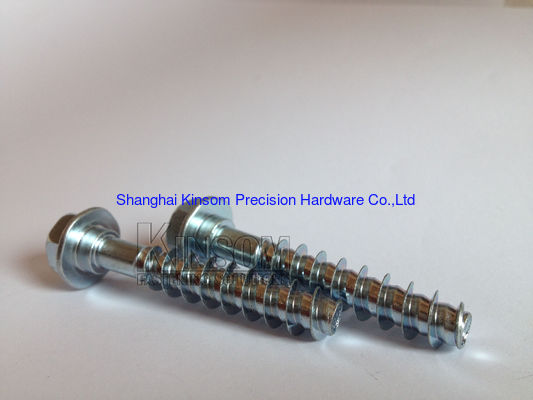

Hex flange self tapping step special bolts cold formed fasteners 5
